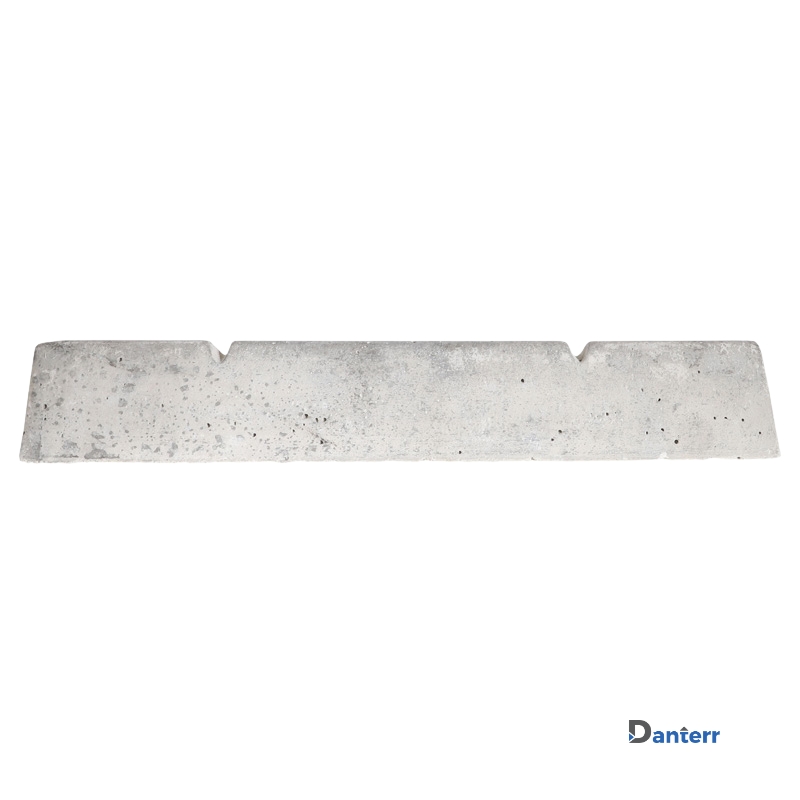

Concrete Rail Spacer - Triangle

Product: Concrete Rail Spacer – Triangle
Product description: Concrete Rail Spacers are used to ensure that specified concrete cover to the reinforcement is achieved. They come in a range of profiles; square, round, square with groove, triangle and custom made spacers are available.

Benefits:

  • High bearing pressure
  • Standard lengths are 33cm and 1m, custom sizes available
  • Triangle bar spacers always have the advantage of the same concrete cover no matter their position
  • Large base-support area to reduce pressure on the formwork
  • Conform to the requirements of AS/NZS2425
  • Excellent bond with concrete, so no hairline cracks between the spacer and concrete should occur
  • Ideal for slab on ground application



Specifications:

Product Code Description Bag Qty/Pcs
103635 Concrete Rail Spacer Triangle 25 x 330mm 3630
103637 Concrete Rail Spacer Triangle 30 x 330mm 2475
103638 Concrete Rail Spacer Triangle 35 x 330mm 1980
103644 Concrete Rail Spacer Triangle 40 x 330mm 1650
107836 Concrete Rail Spacer Triangle 45 x 330mm 1320
103640 Concrete Rail Spacer Triangle 50 x 330mm 1089
112994 Concrete Rail Spacer Triangle 55 x 330mm 990
112995 Concrete Rail Spacer Triangle 60 x 330mm 500
111135 Concrete Rail Spacer Triangle 65 x 330mm 500
112996 Concrete Rail Spacer Triangle 70 x 330mm 400
103642 Concrete Rail Spacer Triangle 75 x 330mm 400



Product Code Description Bag Qty/Pcs
112997 Concrete Rail Spacer Triangle 25 x 1000mm 1000
112998 Concrete Rail Spacer Triangle 30 x 1000mm 1000
112999 Concrete Rail Spacer Triangle 35 x 1000mm 750
106537 Concrete Rail Spacer Triangle 40 x 1000mm 500
113004 Concrete Rail Spacer Triangle 45 x 1000mm 400
113000 Concrete Rail Spacer Triangle 50 x 1000mm 350
104898 Concrete Rail Spacer Triangle 55 x 1000mm 350
113001 Concrete Rail Spacer Triangle 60 x 1000mm 300
111134 Concrete Rail Spacer Triangle 65 x 1000mm 200
103645 Concrete Rail Spacer Triangle 70 x 1000mm 150
103641 Concrete Rail Spacer Triangle 75 x 1000mm 150
113002 Concrete Rail Spacer Triangle 80 x 1000mm 100
113003 Concrete Rail Spacer Triangle 90 x 1000mm 100
106498 Concrete Rail Spacer Triangle 100 x 1000mm 100
