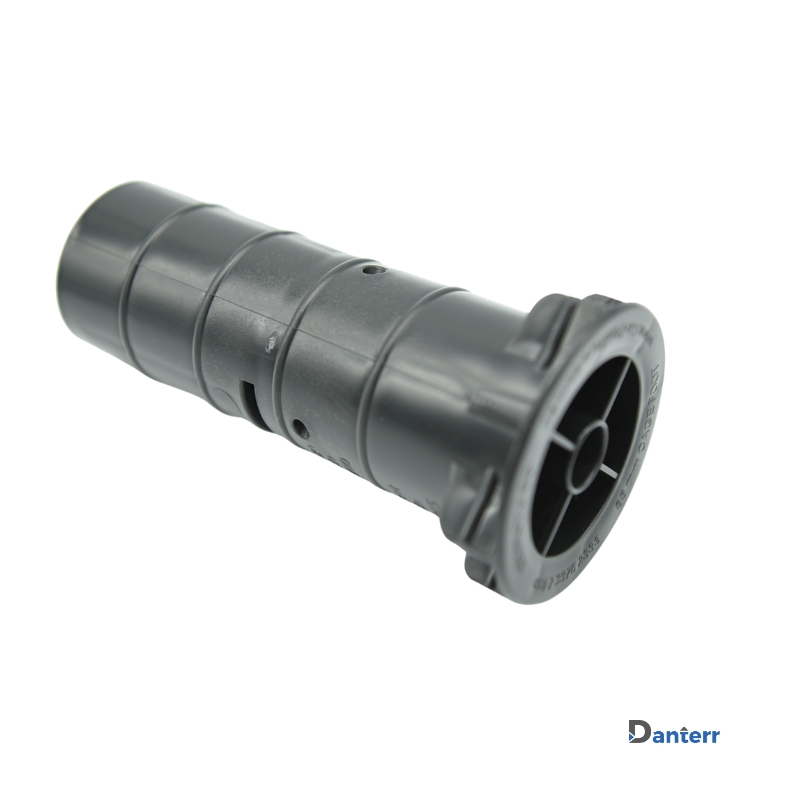

PILE CAGE FOOT

Product: Pile Cage Foot

Product Description:  The Pile Cage Foot is used to ensure correct concrete cover at the bottom of a reinforcing pile cage is achieved.

Benefits:

  • Manufactured in Australia
  • Different sizes and load limits available



Specifications:

Product Code Description Bag Qty Pallet Qty
109723 Pile Cage Foot 85mm Cover 60 2160
108571 Pile Cage Foot 100mm Cover 50 2400
109930 Pile Cage Foot 150mm Cover 40 1920



Cage Foot Specifications:

Size A B C Load Limit
85mm 163mm 78mm 85mm 500kg
100mm 178mm 78mm 100mm 200kg
150mm 228mm 78mm 150mm 250kg
