PILE CAGE WHEEL - HEAVY DUTY

Product: Pile Cage Wheel – Heavy Duty

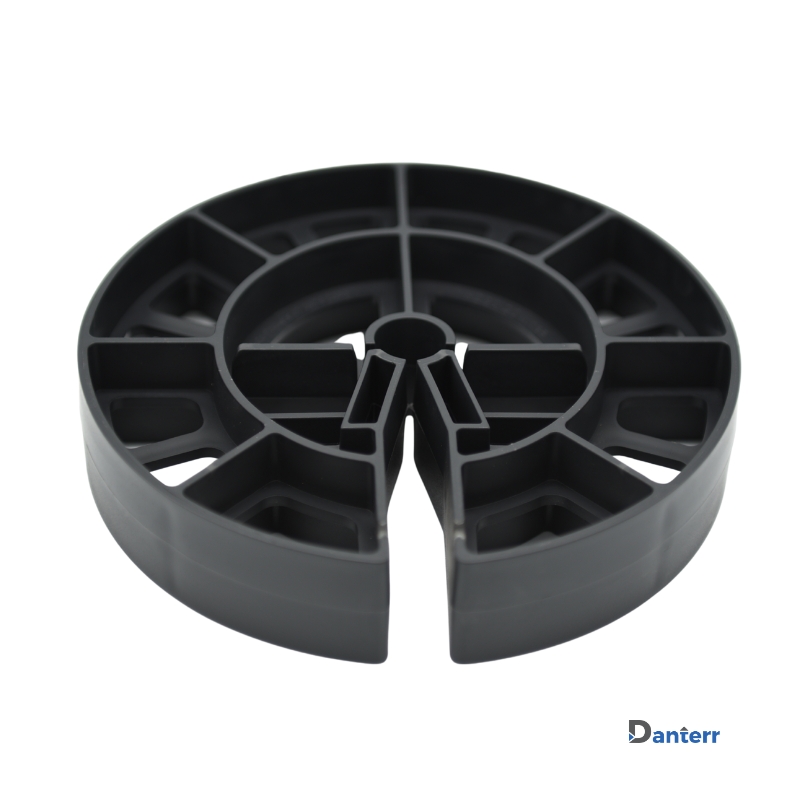

Product Description:  Heavy Duty Pile Cage Wheels, or circular spacers as they are also known, are designed to provide correct concrete cover to pile cage reinforcement bars. They are particularly suited to Raked Pile application where concrete spacers may have been previously used. These Heavy Duty Pile Cage Wheels can be attached as the pile cage is lowered into the ground. Their performance as an accurate guide is maximised by their ‘Push Fit’ and ‘Security Clip’ secure fixing mechanisms.

Benefits:

  • Available in various sizes to provide concrete cover from 25mm to 100mm
  • ‘Push fit’ mechanism used to secure the Pile Cage Wheel requires no tools and keeps it firmly in place.
  • In smaller diameter rebar pile cages the ‘Security Clip’ can be easily pushed into place to ensure a snug and secure hold on the frame.



Specifications:

Product Code Description Bag Qty Pallet Qty
112517 Heavy Duty Pile Cage Wheel 25mm Cover 250 8000
112518 Heavy Duty Pile Cage Wheel 35mm Cover 200 6000
106931 Heavy Duty Pile Cage Wheel 40mm Cover 100 3600
112332 Heavy Duty Pile Cage Wheel 50mm Cover 60 2880
112519 Heavy Duty Pile Cage Wheel 65mm Cover 40 2400
107857 Heavy Duty Pile Cage Wheel 75mm Cover 30 1440
112520 Heavy Duty Pile Cage Wheel 80mm Cover 25 900
108129 Heavy Duty Pile Cage Wheel 85mm Cover 25 1050
106873 Heavy Duty Pile Cage Wheel 100mm Cover 30 810
