Have you ever wondered how to build a tunnel beneath the ocean?
The construction of underwater tunnels is one of the most extraordinary feats of modern engineering. These ambitious projects connect distant lands and push the boundaries of what’s possible in construction. From cutting-edge technology to precision craftsmanship, the building process of underwater tunnels is a testament to human ingenuity and determination.
Australia has a proud history of tunnelling, with numerous successful projects integrated into our infrastructure. A notable example is the Sydney Metro in Sydney. While the projects highlight our capabilities, they are a mere glimpse into the world of underwater tunnel construction, a domain where engineering prowess and precision meet in the most challenging environments.
In this blog, we dive into the complex world of underwater tunnel construction, exploring its global significance and the critical components that make it all possible.
Your Next Project, Simplified with Danterr!
Enter your email to explore our top-quality construction solutions. We’re here to support your project’s needs with innovative, sustainable products.
Catalogue Form
Engineering Excellence: Key Components in Building Underwater Tunnels
Building underwater tunnels requires unparalleled foresight, engineering expertise, and precise execution. At Danterr, we supply essential products that ensure the success of such projects. Here are three fundamental products used in the construction of the Sydney Metro:
Combination SOG Bar Chairs are crucial in maintaining the correct positioning of reinforcement bars within concrete slabs. This ensures the slab’s integrity, which is vital in supporting the tunnel’s structure against immense pressures from the surrounding earth and water.
Benefits:
- Provides dual-height options for increased application flexibility.
- Ensures the reinforcement is correctly positioned, contributing to the slab’s strength.
- Supports the structure against immense pressure from the earth and water above.
Technical Specifications:
- Heights available: 50mm, 65mm, 75mm, 90mm.
- Made from durable plastic.
- Designed to support both fibreglass and iron reinforcement bars.
- Suitable for use in slab-on-ground projects.

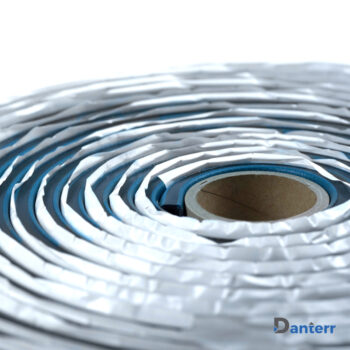

Hydrotite is a hydrophilic rubber water stop that expands upon contact with water, creating a watertight barrier. This is essential for underwater tunnels as it prevents water from penetrating the concrete joints, maintaining the tunnel’s integrity under high water pressure.
Benefits:
- Creates a watertight barrier at concrete joints.
- Expands upon contact with water, providing a superior seal.
- Essential for maintaining tunnel integrity under high water pressure.
Technical Specifications:
- Available sizes: 7mm x 25mm, 10mm x 20mm, 2mm x 20mm.
- Hydrophilic rubber water stop.
- Expands up to 8 times its original volume.
- Suitable for use in various water-retaining structures.

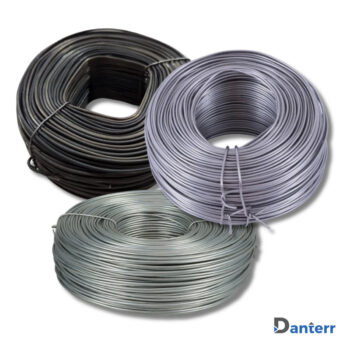

Tie Wire Coils are used to secure the reinforcing mesh within the tunnel’s concrete structure. Properly tied mesh ensures no gaps, which could weaken the structure, thus maintaining the overall strength and stability of the tunnel.
Benefits:
- Secures reinforcing mesh, preventing gaps and ensuring structural integrity.
- Enhances the overall strength of the concrete.
- Critical for maintaining the stability of the tunnel structure.
Technical Specifications:
- Wire thickness: 1.5mm.
- Supplied in 1kg, 2kg, and 3kg coils for ease of use.
- Made from high-quality, durable wire.
The Titanic Lesson: Engineering Triumphs and Tragedies
The Titanic, which once represented the pinnacle of naval engineering but succumbed to the unforgiving forces of nature, underwater tunnel construction faces immense challenges. The Titanic tragedy of 1912 taught us that even the most advanced engineering must respect nature’s power. For decades, exploring the Titanic’s wreckage was impossible due to the crushing pressures of the deep sea. It wasn’t until advances in submersible technology allowed humans to safely venture to the depths of the North Atlantic that we could witness the ship’s remains firsthand. This same relentless drive to conquer nature’s challenges propels the engineering of underwater tunnels, where maintaining structural integrity against water pressure is paramount.
Hydrotite plays a crucial role in this regard, ensuring that the enormous pressure from surrounding water bodies doesn’t compromise the tunnel’s safety. Just as submersibles had to evolve to withstand deep-sea pressures, tunnel construction materials and methods must be continually refined to meet the harsh demands of underwater environments.
The Future of Tunneling in Australia
While Australia may not need tunnels on the scale of China’s or Europe’s megaprojects, our tunnelling efforts are no less significant. As Sydney and Melbourne continue to grow, and with complex infrastructures like Sydney’s harbour, the need for sophisticated tunnelling solutions remains. At Danterr, we are committed to supporting these projects with the highest quality products, ensuring they meet the rigorous demands of modern construction.
Conclusion
Underwater tunnel construction represents the pinnacle of engineering challenges. It requires advanced technology, innovative materials and an unwavering commitment to precision and quality. At Danterr, we are proud to supply the products that make these engineering marvels possible, contributing to safer, more efficient infrastructure that connects communities and drives progress.
Contact Danterr today!
📞: 1800 262 383
📧: sales@danterr.com
Frequently Asked Questions:
An underwater tunnel is a passageway constructed beneath a body of water to facilitate transportation, typically for vehicles, trains, or pedestrians. These tunnels allow direct routes between locations separated by water, reducing travel time and avoiding the need for bridges or ferries.
Building underwater tunnels involves several steps and methods:
- Immersed Tube Method: Prefabricated sections are floated to the construction site, sunk into a pre-dredged trench, and joined underwater.
- Tunnel Boring Machines (TBMs): These machines bore through the earth, creating a tunnel lined with concrete segments behind the TBM.
- Cut-and-Cover Method: A trench is excavated from the surface, the tunnel is constructed within the trench, and the trench is backfilled.
Each method is selected based on project-specific factors such as the depth of water, soil conditions, and environmental considerations.
Hydrotite is a hydrophilic rubber water stop that expands upon contact with water to create a watertight seal. It is used in concrete joints within underwater tunnels to prevent water from penetrating these weak points. When water comes into contact with Hydrotite, it swells, filling gaps and ensuring the joints remain sealed under high water pressure.
Correct placement of reinforcing bars, often supported by products like Combination SOG Bar Chairs, is crucial for maintaining the structural integrity of the concrete slabs. These bars provide tensile strength to the concrete, helping it withstand the immense pressures from the surrounding earth and water. Proper placement ensures even distribution of load and prevents structural weaknesses.
Key challenges in building underwater tunnels include:
- Water Pressure: Managing the immense pressure from the surrounding water is critical.
- Sealing: Ensuring watertight seals to prevent water ingress.
- Soil Conditions: Varying soil types can complicate excavation and construction.
- Environmental Impact: Mitigating disruption to marine ecosystems and water quality.
- Safety: Ensuring the safety of workers and the structural integrity of the tunnel over time.
Advanced engineering solutions and high-quality materials are essential to overcome these challenges.
Engineers ensure the safety of underwater tunnels through rigorous design standards, the use of high-quality materials, continuous monitoring, and regular maintenance. They employ advanced technologies like real-time monitoring systems to detect structural weaknesses or water leaks early on. Additionally, redundant safety systems are often integrated to handle emergencies.
The cost of building an underwater tunnel can vary widely based on factors such as length, depth, construction methods, and local economic conditions. Costs can range from several hundred million dollars to several billion dollars. For example, the Channel Tunnel, which connects the UK and France, cost approximately $21 billion in today’s money.
Construction time for underwater tunnels varies depending on the project’s complexity and length. It can take anywhere from a few years to over a decade to complete. For instance, the Channel Tunnel took six years to build, while the Seikan Tunnel in Japan took nearly 20 years.
If water leaks into an underwater tunnel, it can compromise the structural integrity and safety of the tunnel. Advanced waterproofing methods, such as using Hydrotite in concrete joints, are crucial to prevent leaks. Regular inspections and maintenance are necessary to detect and address potential leaks early to ensure the tunnel remains safe and operational.
