Yandhai Nepean Crossing: Bridging Innovation with Danterr in Western Sydney

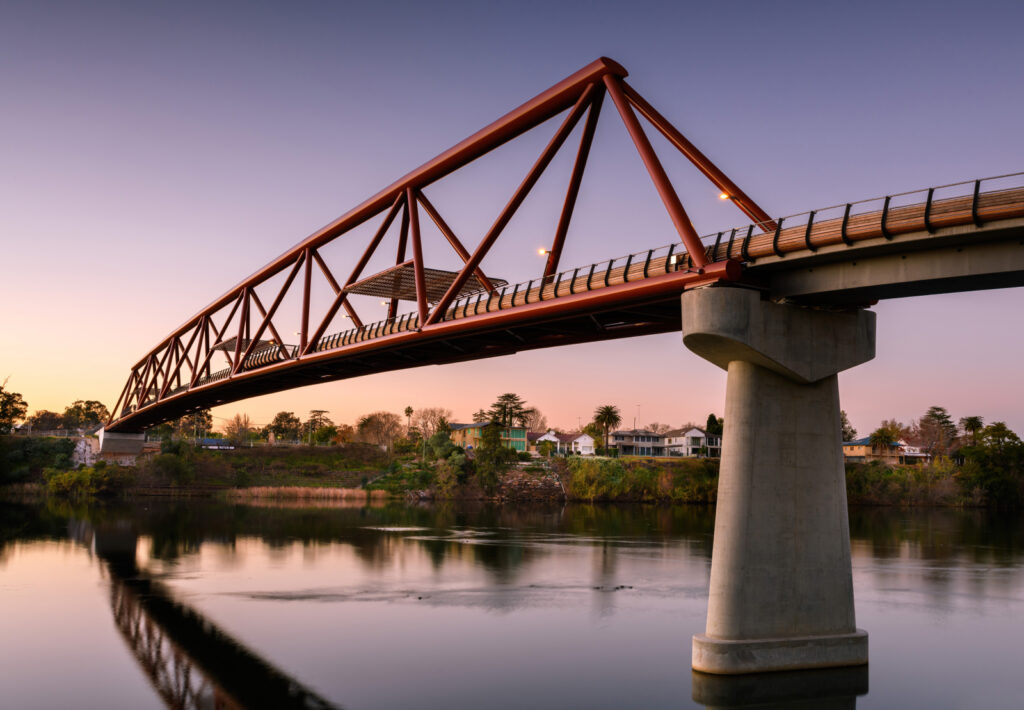

The Yandhai Nepean Crossing (formerly known as the Nepean River Green Bridge) is a landmark structure that has transformed transportation in Western Sydney.  This impressive pedestrian and cyclist bridge, stretching 258 meters across the Nepean River between Penrith and Emu Plains, is the longest single clear-span footbridge in Australia.  Built by Seymour Whyte, with fabrication by Civmec, construction began in December 2014, culminating in the bridge’s official opening on October 28, 2018.  Danterr is proud to have played a role in this significant project.

Bridge Construction: Challenges & Innovation

The Yandhai Nepean Crossing is a remarkable feat of engineering that showcases innovative construction techniques. Its main span stretches an impressive 200 meters, and its complex steel truss design weighs approximately 800 tons. To overcome the limitations of workshop space and to ensure the highest level of precision, the bridge was constructed in a unique two-stage process:

• Stage 1: Prefabrication and Trial Assembly (Newcastle): Steel truss sections were meticulously manufactured in Newcastle. To ensure strict design tolerances were met, the bridge was initially assembled in a workshop at a 90-degree rotation. After this trial fitting and conformity checks, the bridge was disassembled for transport.
• Stage 2: Reassembly and Launch (Penrith): In Penrith, the bridge was reassembled in its final upright position within a purpose-built workshop. It was then progressively launched across the Nepean River using temporary piers and the innovative “node-by-node” technique. This incremental launch method involved assembling and securing prefabricated truss sections one by one.

Surveying Challenges

Image Source

The surveying process for this project was exceptionally complex.  The bridge’s “nodes,” the intersection points of its tubular steel members, were inaccessible, requiring surveyors to calculate their positions with utmost precision. The initial 90-degree rotation of the bridge added another layer of complexity, as surveyors needed to transpose coordinates and adjust calculations accordingly.  Despite these challenges, the team’s expertise and meticulous measurements ensured the accurate positioning of each node.

Overcoming Weather Conditions

Extreme weather conditions, particularly high temperatures exceeding 40ºC  and strong winds, posed additional challenges.  The steel truss would expand and contract significantly due to temperature fluctuations, distorting its geometry.   To mitigate these effects, surveyors performed critical measurements in the early morning hours when temperatures were most stable.

Danterr’s Contributions: Reliable Supplies for a Complex Build

Image Source

Danterr played a key role in the successful completion of the Yandhai Nepean Crossing, providing a range of essential construction materials:

• CONCRETE ASPROS (SPACERS): These ensured proper concrete cover over the bridge’s steel reinforcement, protecting it from corrosion and maximising structural integrity.
• TIE WIRE: Danterr’s tie wire secured steel reinforcement within the bridge’s concrete elements, contributing to its strength and stability.
• BACKING ROD: This compressible, closed-cell polyolefin foam tube was used to provide a backing for cold-applied sealants in the bridge’s expansion/construction joints, ensuring flexibility and weather resistance.
• STAINLESS STEEL DOWELS: These provided superior strength and corrosion resistance, crucial for joining and supporting bridge components, ensuring the structure’s longevity.
• FERRULES: Danterr’s ferrules, available in zinc, galvanised, and stainless steel finishes, acted as inserts with reinforcement bars for superior anchorage within the concrete. They prevented reinforcement movement during concrete pours and vibrations.
• DENSO TAPE: This specialised tape, designed for extreme temperature variations, provided long-term corrosion protection to the bridge’s pipes, flanges, valves, and related surfaces.
• SCREW BOLTS: This single-unit, screw-type anchors were used in solid concrete applications, offering a secure fixing solution through their self-tapping mechanism and specialised thread indentations.

Yandhai Nepean Crossing: Benefits & Impact

The Yandhai Nepean Crossing has made a significant positive impact on the Western Sydney community:

• Safer Crossings: The bridge provides a dedicated, traffic-free route for pedestrians and cyclists, significantly enhancing safety.
• Improved Accessibility: The bridge offers better connectivity between Penrith and Emu Plains, opening up new opportunities for commuting, recreation, and tourism.
• Greener Commuting: By encouraging walking and cycling, the bridge contributes to a reduction in carbon emissions and promotes healthier lifestyles.
• Community Connection: The Yandhai Nepean Crossing has become a beloved landmark, fostering a sense of place and connection for residents.

Preparing for your next infrastructure project in Western Sydney? Contact Danterr for the concrete solutions and construction materials that ensure success. We’re committed to delivering quality products and reliable service to support the region’s growth. Get in touch today: 1800 262 383 or sales@danterr.com.
